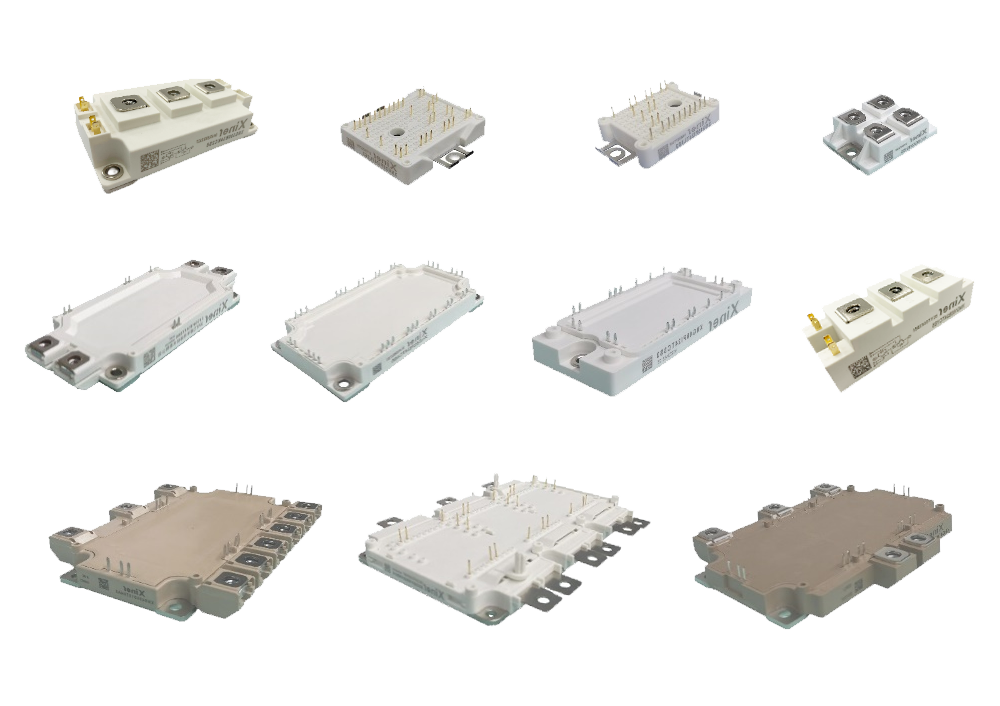

九游品牌面市的IGBT输出组件选择基槽型式的场载止期技能（Trench Field Stop），基槽元胞型式有很大的多元元器封装类型的耗油率强度，借助超轻薄片加工工艺制造（Ultra Thin Wafer Process）在电子元器集探针端应用领域电磁场载止期型（Field Stop）型式，因此强势变低元元器封装类型的饱满导通压降（Vce（sat））和关断消耗（Eoff），相对一代企业成品，元元器封装类型耗油率消耗（导通消耗与电源旋钮消耗之和）变低了33%，协调使用独立自主的等相电压加快治愈电感（FRD），合适的于多种电源旋钮应用领域。输出组件选择规范封装类型，企业成品在严酷的区域下享有稳定的同一的电性能和不变，避免后期使用时出现晃动影响体验效果的稳定性能。

特征与资源优势：

低饱和导通压降（Vce（sat））;
低开关损耗（Ets）;
高击穿电压（BVces）;
高短路电流耐量（Icsc）;
电参数重复性与一致性；
高可靠性。

产品参数

Product Name	Voltage Class	IC(nom)	Housing	Dimensions	Configuration
Product Name	Voltage Class	IF(nom)	Housing	Dimensions	Configuration
XNG20PI12TL1S3	600V	20A	L1	34×48×15.5mm	PIM Three Phase Input Rectifier
XNG30PI12TL1S3	600V	30A	L1	34×48×15.5mm	PIM Three Phase Input Rectifier
XNG15PI24TL1S3	1200V	15A	L1	34×48×12mm	PIM Three Phase Input Rectifier
XNG25PI24TL1S3	1200V	25A	L1	34×48×12mm	PIM Three Phase Input Rectifier
XNG50PI12TL2S3	600V	50A	L2	48×57×15.5mm	PIM Three Phase Input Rectifier
XNG25PI24TL2S3	1200V	25A	L2	48×57×15.5mm	PIM Three Phase Input Rectifier
XNG40PI24TL2S3	1200V	40A	L2	48×57×15.5mm	PIM Three Phase Input Rectifier
XNG50PI24TL2S	1200V	50A	L2	48×57×15.5mm	PIM Three Phase Input Rectifier
XNG50DT12L2S	1200V	50A	L2	48×57×15.5mm	SixPack Three Phase Bridge
XNG75DT12L2S	1200V	75A	L2	48×57×15.5mm	SixPack Three Phase Bridge
XNG100I13TL2S	650V	100A	L2	57×48×12mm	I-Type NPC Inverter
XNG150I13TL2S	650V	150A	L2	57×48×12mm	I-Type NPC Inverter
XNG450I13KL3E	650V	450A	L3	107.2×47×16.7mm	I-Type NPC Inverter
XNG50B24UC1S	1200V	50A	C1	94×34×30mm	Half Bridge
XNG75B24UC1S	1200V	75A	C1	94×34×30mm	Half Bridge
XNG75B24KC1S	1200V	75A	C1	94×34×30mm	Half Bridge
XNG100B24UC1S6	1200V	100A	C1	94×34×30mm	Half Bridge
XNG100B24KC1S	1200V	100A	C1	94×34×30mm	Half Bridge
XNG150B24UC1S	1200V	150A	C1	94×34×30mm	Half Bridge
XNG150B24KC1S	1200V	150A	C1	94×34×30mm	Half Bridge
XNG150B24UC2S	1200V	150A	C2	106×62×30mm	Half Bridge
XNG150B24KC2S	1200V	150A	C2	106×62×30mm	Half Bridge
XNG200B24UC2S6	1200V	200A	C2	106×62×30mm	Half Bridge
XNG200B24KC2S5	1200V	200A	C2	106×62×30mm	Half Bridge
XNG300B24UC2S5	1200V	300A	C2	106×62×30mm	Half Bridge
XNG300B24KC2S5	1200V	300A	C2	106×62×30mm	Half Bridge
XNG450B24UC2S	1200V	450A	C2	106×62×30mm	Half Bridge
XNG450B24KC2S	1200V	450A	C2	106×62×30mm	Half Bridge
XNG15PI24TC3	1200V	15A	C3	107×45×17mm	PIM Three Phase Input Rectifier
XNG25PI24TC3	1200V	25A	C3	107×45×17mm	PIM Three Phase Input Rectifier
XNG35PI24TC3	1200V	35A	C3	107×45×17mm	PIM Three Phase Input Rectifier
XNG40PI24TC3	1200V	40A	C3	107×45×17mm	PIM Three Phase Input Rectifier
XNG50PI24TC3	1200V	50A	C3	107×45×17mm	PIM Three Phase Input Rectifier
XNG50D24TC3S	1200V	50A	C3	107×45×17mm	SixPack Three Phase Bridge
XNG75D24TC3S	1200V	75A	C3	107×45×17mm	SixPack Three Phase Bridge
XNG100D24TC3S	1200V	100A	C3	107×45×17mm	SixPack Three Phase Bridge
XNG25PI24TC3AS3	1200V	25A	C3	107×45×17mm	PIM Three Phase Input Rectifier
XNG40PI24TC3AS3	1200V	40A	C3	107×45×17mm	PIM Three Phase Input Rectifier
XNG50PI24TC4AS5	1200V	50A	C4	122×62×17mm	PIM Three Phase Input Rectifier
XNG50PI24TC4S5	1200V	50A	C4	122×62×17mm	PIM Three Phase Input Rectifier
XNG75PI24TC4AS5	1200V	75A	C4	122×62×17mm	PIM Three Phase Input Rectifier
XNG75PI24TC4S5	1200V	75A	C4	122×62×17mm	PIM Three Phase Input Rectifier
XNG100PI24TC4S5	1200V	100A	C4	122×62×17mm	PIM Three Phase Input
XNG150PI24KC4S	1200V	150A	C4	122×62×17mm	PIM Three Phase Input
XNG100D24TC4S	1200V	100A	C4	122×62×17mm	SixPack Three Phase Bridge
XNG150D24KC4A5	1200V	150A	C4	122×62×17mm	SixPack Three Phase Bridge
XNG150D24KC4A5D	1200V	150A	C4	122×62×17mm	SixPack Three Phase Bridge
XNG200D24KC4S	1200V	200A	C4	122×62×17mm	SixPack Three Phase Bridge
XNG300B24LC5E	1200V	300A	C5	152×62×17mm	Half Bridge
XNG450B24KC5A5	1200V	450A	C5	152×62×17mm	Half Bridge
XNG600B24LC5E	1200V	600A	C5	152×62×17mm	Half Bridge
XNG300B34KC5E	1700V	300A	C5	152×62×17mm	Half Bridge
XNG450B34KC5A5	1700V	450A	C5	152×62×17mm	Half Bridge
XNG600B34LC5E	1700V	600A	C5	152×62×17mm	Half Bridge
XNG600B24LC5E-Y	1200V	600A	C5	152×62×17mm	Half Bridge
XNG400DT08H4A-J11	750V	400A	H4	140×112×21mm	SixPack Three Phase Bridge
XNG500DT08H4A-H11	750V	500A	H4	140×112×30mm	SixPack Three Phase Bridge
XNG250D24TH4AH	1200V	250A	H4	140×112×30mm	SixPack Three Phase Bridge
XNG550DT08H6A-H16	750V	550A	H6	140×112×30mm	SixPack Three Phase Bridge
XNG600DT08H6A-H14	750V	600A	H6	140×112×30mm	SixPack Three Phase Bridge
XNG950DT08WA-CH14	750V	950A	H7	154.5×126.5×32mm	SixPack Three Phase Bridge
